Quote by confirmed dimensions
Size notation and critical fit dimensions are checked before commercial approval.
Authorized product photography available
PRODUCT PHOTO
01
Specification-led quotationNo placeholder price is treated as an order-ready offer.
02
Replacement matching supportReference brands identify geometry; compatibility is confirmed.
03
Inspection by agreementRequired checks and documents are stated in the quotation.
04
International shipment coordinationCourier, air or sea freight is quoted to destination.
PRODUCT OVERVIEW
Product identification and RFQ basis
The website supports identification and inquiry. The written quotation, approved drawing or approved sample controls the order.

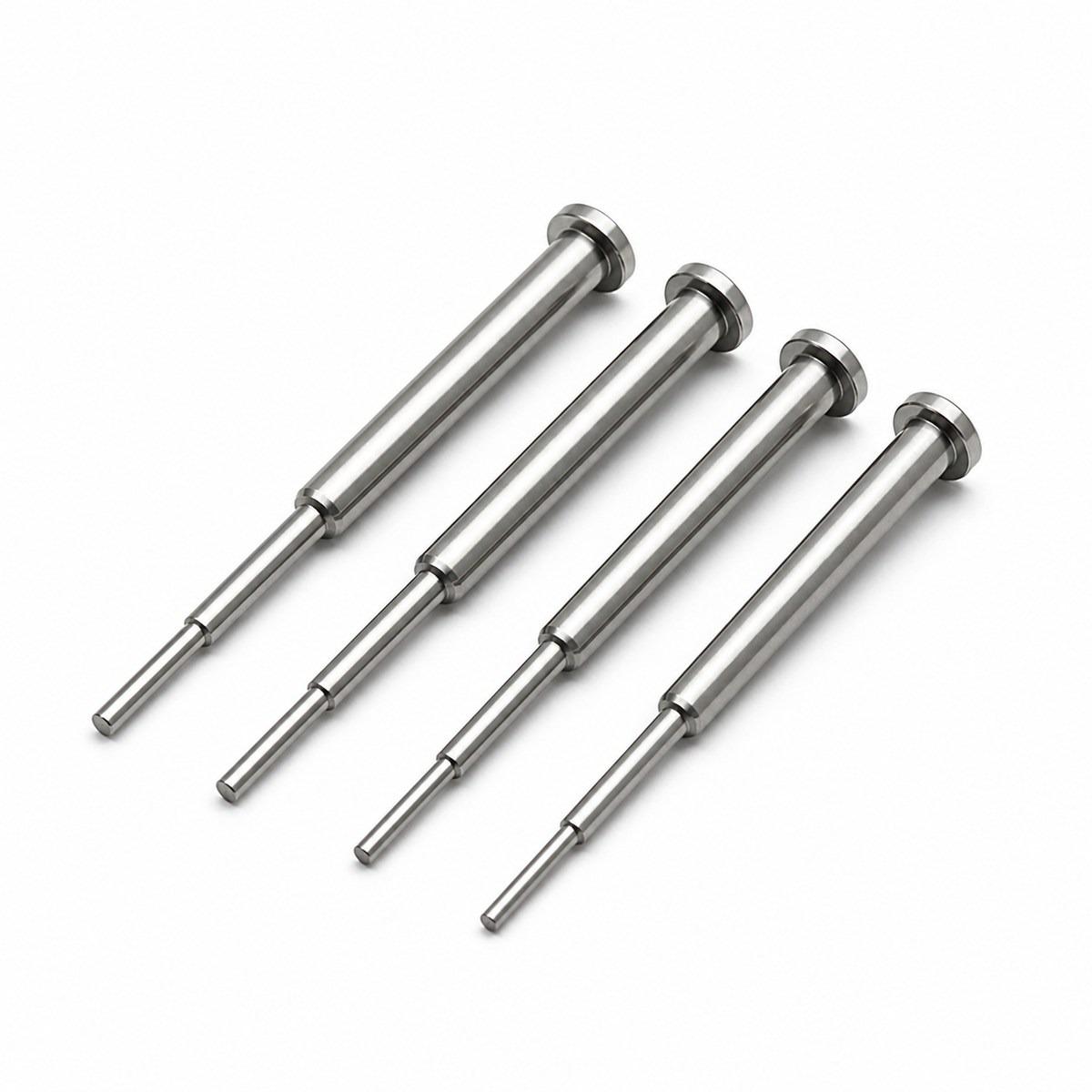

SKD61 nitrided stepped ejector pins made to your size. Stepped pins let you eject from a small feature without the fragility of a thin pin along its whole length — the tip does the work, the larger shank carries the load. B-type, double-step, three-section and supported stepped configurations are all available. Send the size, a drawing or a sample and we come back with unit price, lead time and trade terms in writing, normally within one business day (Hong Kong time, Monday–Friday).
Standard sizes are in stock — no RFQ needed
If your size is one of the common P × D × L – N combinations, you do not need to send an enquiry. Order stepped pins directly in packs of 5, priced from $10.90 with no minimum order: tip diameters Ø0.8 to Ø3.0 on Ø3 and Ø4 retention diameters, overall lengths 150 / 200 / 250 mm, retention lengths 50 / 70 / 75 mm.
Use the RFQ route below for anything outside that range — other P / D pairs, non-standard head diameters and thicknesses, double-step or three-section pins, or quantities where a per-piece price beats the pack price.
Your drawings stay confidential
Technical files are used to evaluate and fulfill your inquiry or order. They may be shared only with relevant manufacturing, inspection, logistics or service partners as needed. Send only files you are authorized to share. See our Privacy Policy. If your company requires an NDA, send the agreement or requirements to rfq@privleymold.com for review before sharing confidential files.

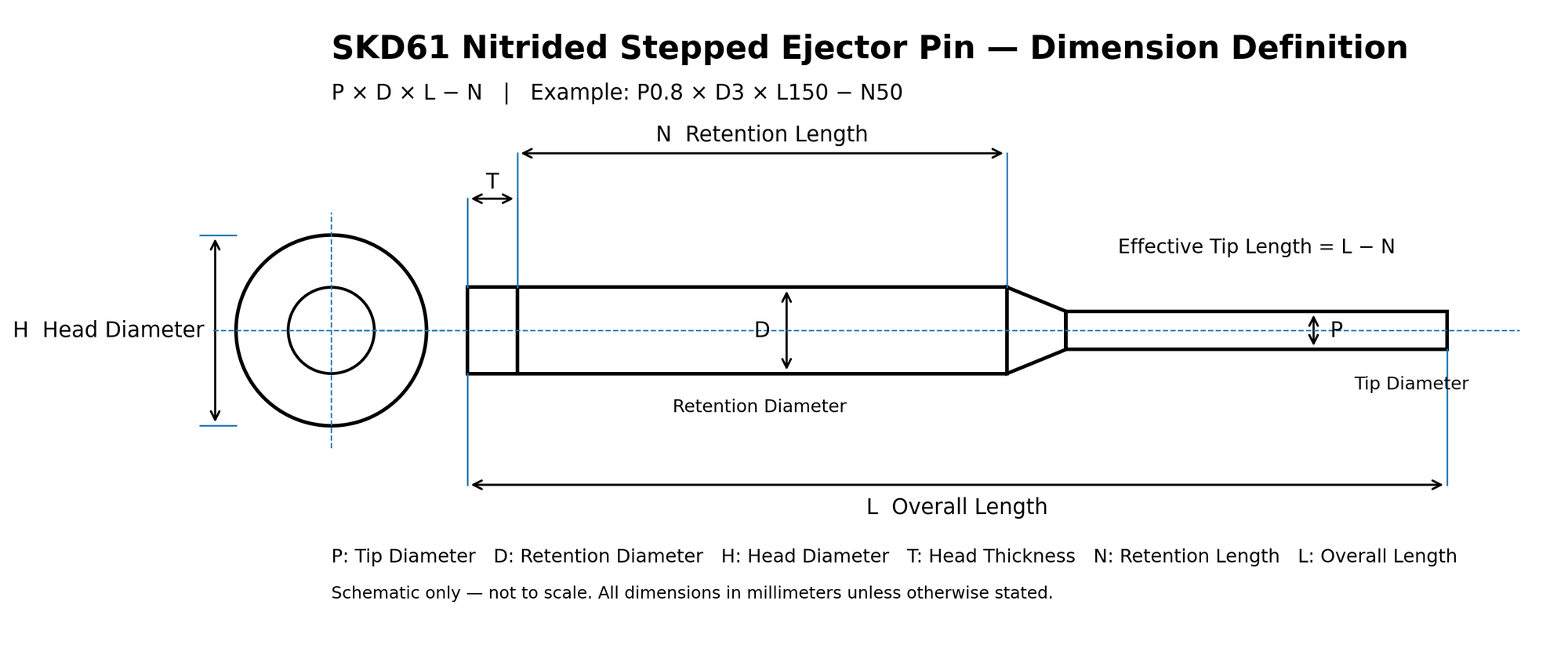

How to write the size
We use the notation P × D × L – N:
| P | Tip diameter (the working end) |
| D | Retention / shoulder diameter |
| H | Head diameter |
| T | Head thickness |
| L | Overall length |
| N | Retention length, from the head-side reference to the step |
| L − N | Effective length of the small-diameter tip |
For example, P0.8 × D3 × L150 – N50 is a 0.8 mm tip, 3 mm retention diameter, 150 mm overall, with 50 mm of retention length. All dimensions in millimetres.
Common P / D / H / T combinations
| P | D | H | T |
|---|---|---|---|
| 1.0, 1.2, 1.5, 2.0 | 3 | 6 | 4 |
| 2.5 | 4 | 8 | 6 |
| 2.0, 2.5, 3.0 | 5 | 9 | 6 |
| 3.0, 4.0 | 6 | 10 | 6 |
Note that the same tip diameter appears against more than one retention diameter — so always give us the full P × D pair rather than P alone.
Common L / N combinations
- L125 / N25
- L160 / N50
- L160 / N75
- L200 / N75
- L200 / N100
- L200 / N125
These are the combinations most often requested, not a limit. Other lengths and retention lengths are quoted on request — tell us what you need and we will confirm availability and price together.
What to send us
| Complete size | P × D × L – N, plus H and T if non-standard |
| Material | SKD61 as standard. Tell us if you need an equivalent grade (H13 / 1.2344) named on the certificate |
| Surface treatment | Nitrided as standard |
| Hardness | Tell us your required surface and core hardness if the application is demanding |
| Tolerances | Mark which diameters, straightness or lengths are critical to fit |
| Quantity | Required — drives both unit price and freight |
Don't have all of this? Send what you have. A photo of the broken pin next to a caliper is often enough to start, and we will tell you what else we need.
Documentation
Material certificates, hardness results and dimensional inspection reports can be supplied with your order. Tell us what your quality system requires and we will confirm the scope — and any cost — in the quotation, so there are no surprises at goods-in.
What your quotation will state
Hardness, tolerances, availability, packaging, lead time, inspection documents, unit price and freight — all in writing before you commit. Nothing is left to be worked out after the order.
Questions before you send a drawing? Email rfq@privleymold.com — we answer technical questions without any obligation to order.
RFQ planning resources
- Custom ejector pin RFQ dimensions and copyable request template
- Replacement measurement checklist when no drawing is available
- BOM checklist for multi-item mold component inquiries
Submit a secure RFQ with your drawing, measured dimensions, quantity and destination.
Material and treatment stated
The quotation records confirmed material, heat treatment and surface basis.
Replacement review
Existing references are checked against controlling dimensions and function.
Documents by quotation
Material, hardness or dimensional records are included only when available.
TECHNICAL DATA
Current specification basis
Blank fields remain pending and are not filled by assumption.
- Part number
- PMC-EP-SKD61-STP
- Standard / series
- B-Type / Double-Step / Multi-Section
- Material
- SKD61
- Hardness / heat treatment
- Pending supplier confirmation
- Surface treatment
- Nitrided
- Dimensions / notation
- Notation: P × D × L – N.
P = tip diameter; D = retention diameter; H = head diameter; T = head thickness; L = overall length; N = retention length; L−N = effective tip length.
Reference P/D/H/T groups:
P1.0/1.2/1.5/2.0 → D3 H6 T4
P2.5 → D4 H8 T6
P2.0/2.5/3.0 → D5 H9 T6
P3.0/4.0 → D6 H10 T6
Reference L/N groups: 125/25; 160/50; 160/75; 200/75; 200/100; 200/125.
Current marketplace options also show additional L150, L250 and N70/N75 combinations. Confirm current option or drawing before quotation.
SELECTION GUIDE
Build the RFQ around the part that must fit
There is no automatic configurator until supplier-verified combinations are loaded.
State every controlling size
Use the drawing notation or attach a marked drawing. Include tolerances where fit is critical.
Specify the required basis
Provide grade, accepted equivalent, heat treatment, hardness and finish.
Identify the existing component
Include brand reference, old part number, mating component and measured dimensions.
Define the buying condition
Quantity, destination, date, packaging, inspection and freight determine the quote.

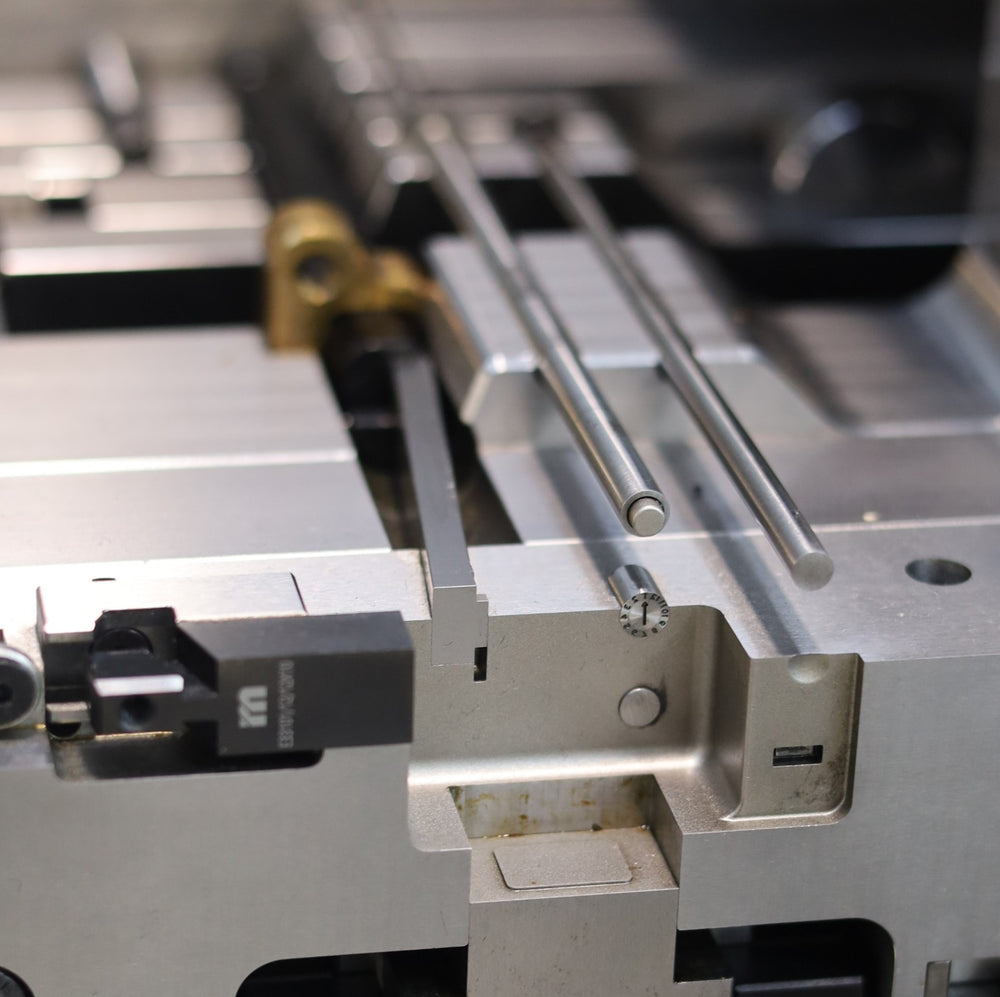

APPLICATION & VISUAL EVIDENCE
Show where and how the component is used
Application photographs are displayed only when supplied with permission.
DOWNLOADS & FILES
Use structured files to reduce quotation errors
Only files actually available on the website are listed.
REQUEST A WRITTEN QUOTATION
Tell us exactly what must be supplied
A complete inquiry gives engineering, sourcing and purchasing the same reference.
✓
Part number, standard or drawing revision
✓
Dimensions, tolerances and mating information
✓
Material, treatment, hardness and finish
✓
Quantity, destination and required date
✓
Inspection, packaging and freight requirements
Files cannot be attached to this form.
Email authorized drawings, product photos or BOM files to sales@privleymold.com.
PRODUCT RFQPMC-EP-SKD61-STP
