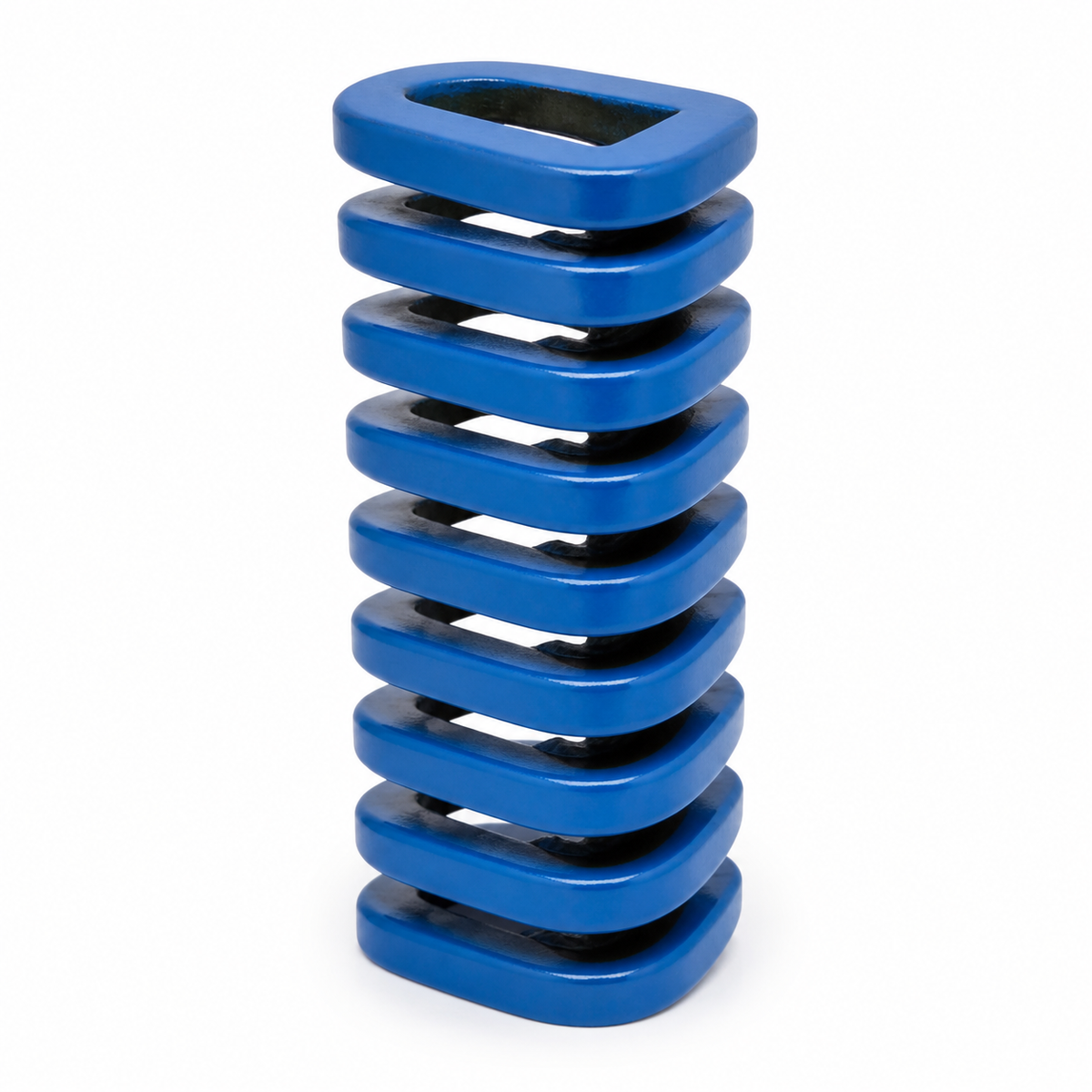

Blue 65Mn rectangular-wire die springs — TL / SWL light load. For injection molds, stamping dies, fixtures and general industrial compression. Send the size and we will review it for quotation; if you are replacing a spring in an existing tool, send the old one's dimensions and we will match it.
Read the colour code before you order
These springs follow the JIS-style colour system, not ISO 10243. The two systems assign different loads to the same colours, and this catches people out.
| Colour | Code | Load class (this system) | Max compression (300,000 cycles) | Max compression (1,000,000 cycles) |
|---|---|---|---|---|
| Yellow | TF / SWF | Extra light | 50% of free length | 40% of free length |
| Blue | TL / SWL | Light | 40% of free length | 32% of free length |
Under ISO 10243, blue means medium load. Under this system, blue means light. If your drawing calls out an ISO blue spring, this is not a drop-in equivalent — tell us the load you actually need and we will point you to the right one.
Maximum compression depends on the life you need
Published maximum-compression figures are always tied to a cycle count, and confusing the two is the most common reason die springs fail early. The widely quoted 40% for blue TL / SWL is the figure for around 300,000 cycles. For a tool that has to run a million cycles it drops to about 32%. Yellow TF / SWF follows the same pattern: roughly 50% at 300,000 cycles, about 40% at one million.
If you are designing a long-run production tool, size against the one-million-cycle figure and treat the 300,000-cycle number as a short-life limit, not as headroom. A spring that comes out of the tool shorter than its original free length has already been over-compressed and will not recover.
Maximum compression load by outside diameter
Blue TL / SWL, at 40% compression — the 300,000-cycle basis described above. Note that these values depend on outside diameter only: a longer spring of the same OD has the same maximum load.
| OD (mm) | ID (mm) | Max load (kgf) | Max load (N) | Max load (lbf) |
|---|---|---|---|---|
| 6 | 3 | 6.4 | 63 | 14.1 |
| 8 | 4 | 8.0 | 78 | 17.6 |
| 10 | 5 | 11.2 | 110 | 24.7 |
| 12 | 6 | 16.8 | 165 | 37.0 |
| 14 | 7 | 22.4 | 220 | 49.4 |
| 16 | 8 | 28.0 | 275 | 61.7 |
| 18 | 9 | 34.4 | 337 | 75.8 |
| 20 | 10 | 43.2 | 424 | 95.2 |
| 22 | 11 | 53.6 | 526 | 118.2 |
| 25 | 12.5 | 67.2 | 659 | 148.1 |
| 27 | 13.5 | 80.0 | 785 | 176.4 |
| 30 | 15 | 96.8 | 949 | 213.4 |
| 35 | 17.5 | 132.0 | 1294 | 291.0 |
| 40 | 20 | 172.8 | 1695 | 380.9 |
| 50 | 25 | 270.4 | 2652 | 596.1 |
| 60 | 30 | 388.8 | 3813 | 857.1 |
These are maximum (limit) values. For a working design, size the spring so normal operating compression stays well below the limit — running at the limit shortens fatigue life sharply.
Need a different load?
Yellow (TF / SWF) is the lighter option in this range. If you need medium, heavy or extra-heavy classes, ask — we will confirm availability and quote them alongside.
What to send us
| OD | Outside diameter — this sets the load class |
| L₀ | Free length |
| Working stroke | Normal operating compression, not the maximum |
| Required load | Load needed at that compression, if you know it |
| Cycle life | Expected cycles — this decides which compression limit applies |
| Quantity | Required — drives both unit price and freight |
Replacing an existing spring? The old spring's OD, free length and colour are usually enough. Send a photo with a caliper if you are unsure.
Material and documentation
Supplied in 65Mn spring steel. Material certificates and inspection reports can be provided with your order — tell us what your quality system requires and we will confirm the scope, and any cost, in the quotation.
Your drawings stay confidential
Technical files are used to evaluate and fulfill your inquiry or order. They may be shared only with relevant manufacturing, inspection, logistics or service partners as needed. Send only files you are authorized to share. See our Privacy Policy. NDA available on request from rfq@privleymold.com.
Not sure which load class you need? Email rfq@privleymold.com with your application and we will help you size it — no obligation to order.
Material and treatment stated
The quotation records confirmed material, heat treatment and surface basis.
Replacement review
Existing references are checked against controlling dimensions and function.
Documents by quotation
Material, hardness or dimensional records are included only when available.
TECHNICAL DATA
Current specification basis
Blank fields remain pending and are not filled by assumption.
- Part number
- PMC-SPR-65MN-B
- Standard / series
- Blue Rectangular-Wire Die Spring
- Material
- 65Mn spring steel
- Dimensions / notation

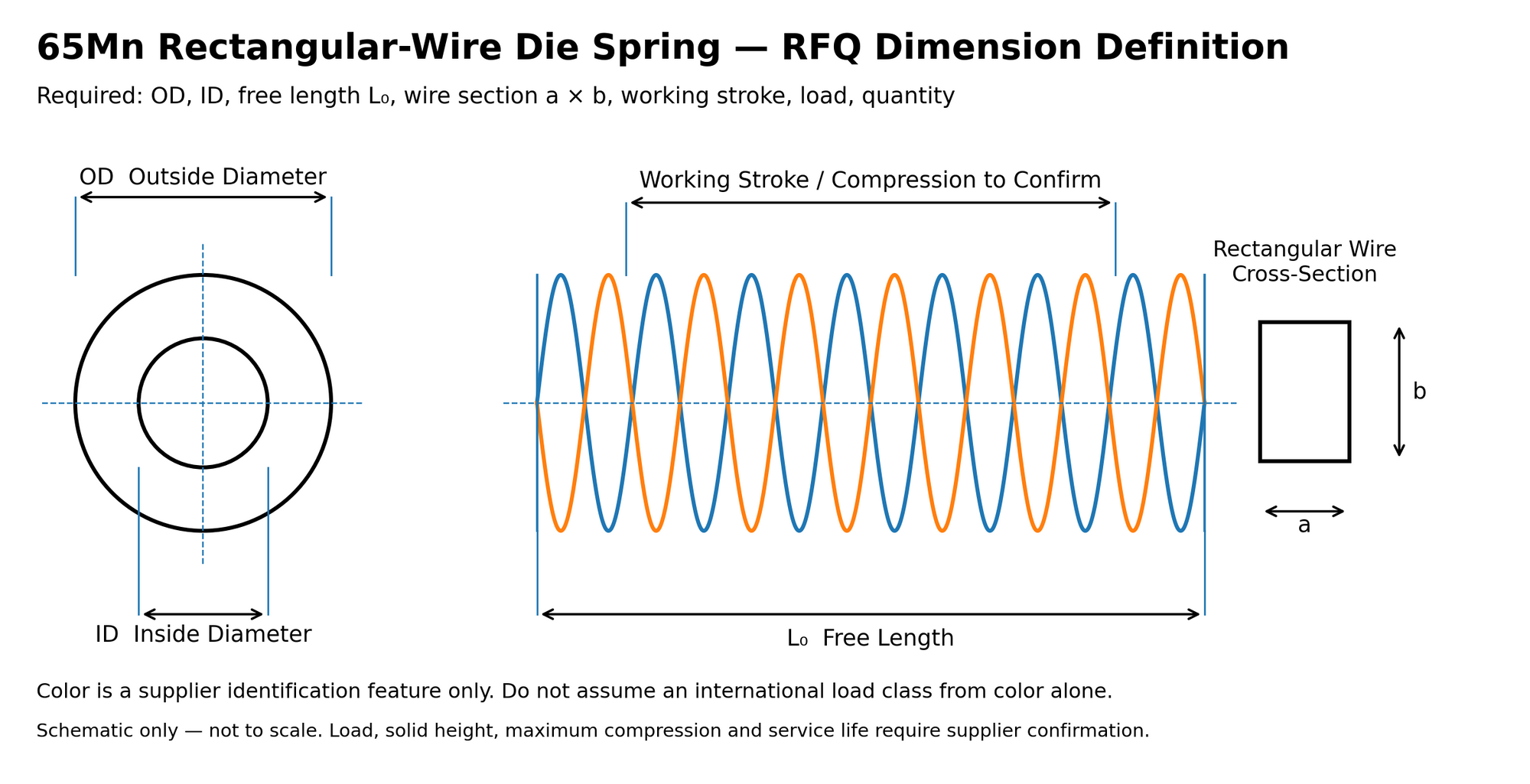

- RFQ dimensions required: outside diameter OD, inside diameter ID, free length L0, rectangular wire section a × b, working stroke, required load, and quantity. Color must not be assumed to equal a universal international load class.
