Quote by confirmed dimensions
Size notation and critical fit dimensions are checked before commercial approval.
Authorized product photography available
PRODUCT PHOTO
01
Specification-led quotationNo placeholder price is treated as an order-ready offer.
02
Replacement matching supportReference brands identify geometry; compatibility is confirmed.
03
Inspection by agreementRequired checks and documents are stated in the quotation.
04
International shipment coordinationCourier, air or sea freight is quoted to destination.
PRODUCT OVERVIEW
Product identification and RFQ basis
The website supports identification and inquiry. The written quotation, approved drawing or approved sample controls the order.

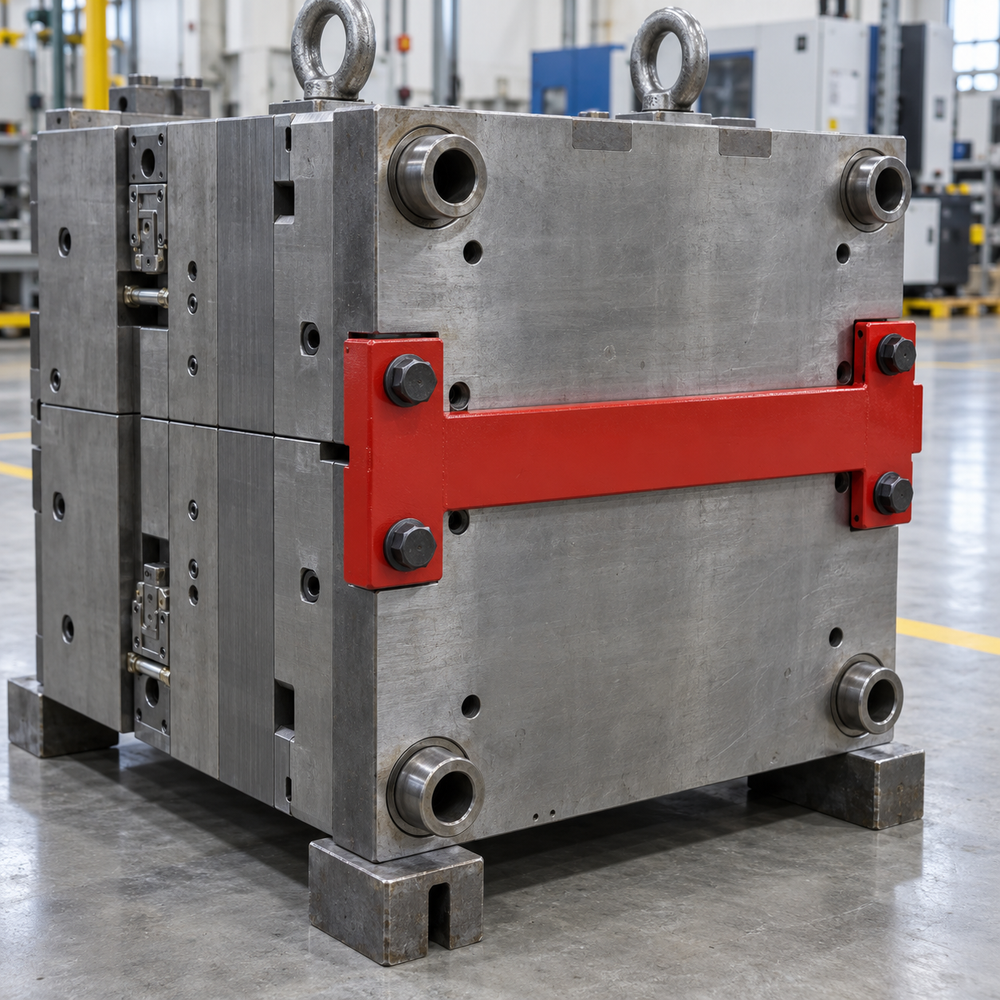

Mold transport locks and retaining plates, made to your drawing. The plates fitted across the parting line to keep mold halves together while a mold is craned, stored or shipped. Send a drawing, the mold dimensions and mounting positions, or the existing plate photographed with a caliper, and we quote in writing, normally within one business day.
Read this first — the limit of what we supply
These are machined retaining plates. They are not certified lifting equipment, personnel-safety devices or machine guards, and we do not represent them as any of those things. A retaining plate holds mold halves together against the loads the responsible engineer has assessed. It is not rated for suspending a load, it does not replace a lifting eye or a sling, and no website title, image or type reference is a substitute for your own risk assessment.
The mold designer or the responsible engineer must define the load path, the mounting, the retention requirement and the handling conditions, and must approve the installation. If you are unsure whether a plate is the right control for what you are doing, that question belongs with your safety engineer before it belongs with a supplier. We would rather lose the order than have this part used as something it is not.
What we can do well
Within that boundary, these are straightforward parts to make properly, and a few details separate a good one from a nuisance:

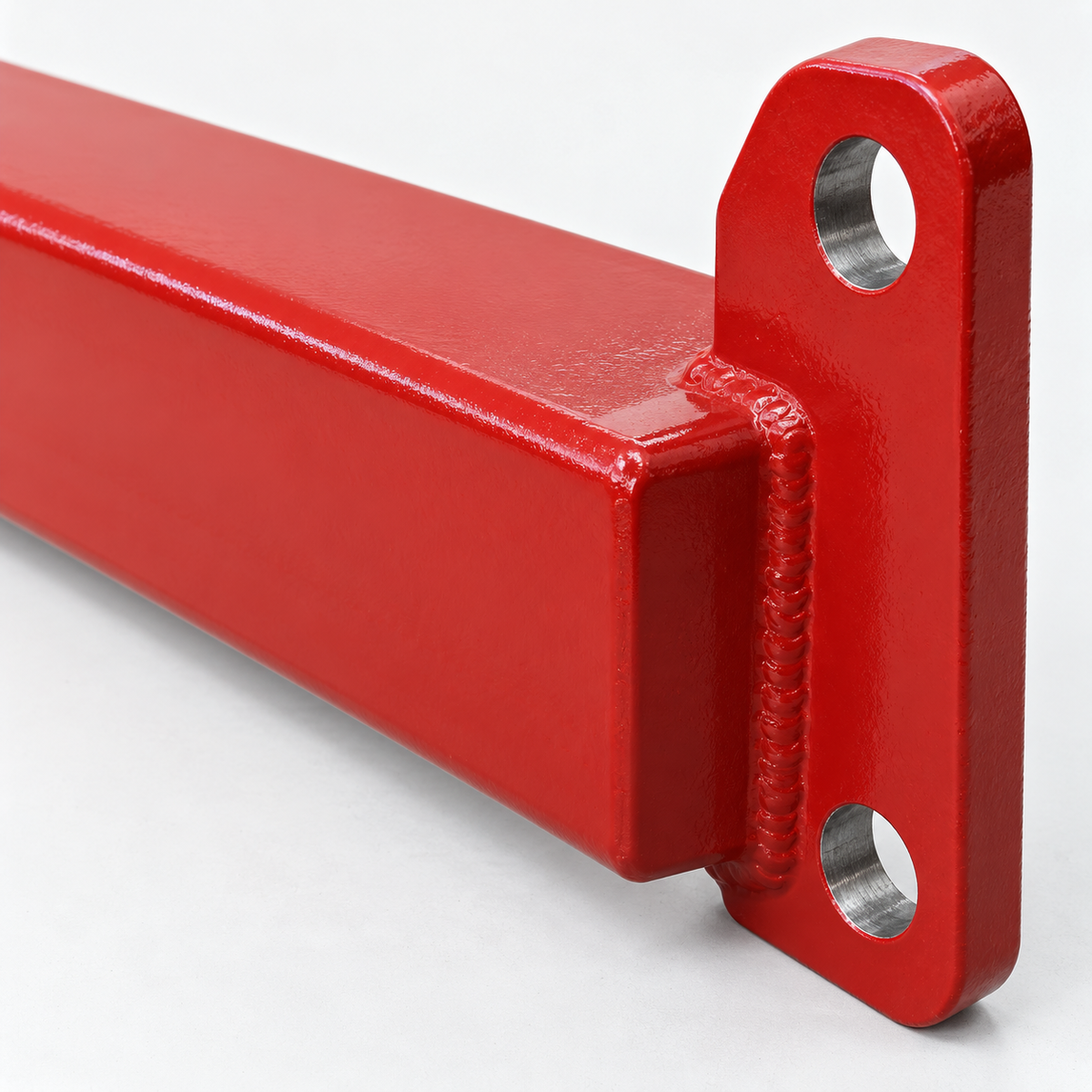

- Mounting must locate, not just clamp. A plate held only by bolt friction can shift under a jolt. Dowels, a shouldered register, or a close-fitting bolt in at least one hole put the load into steel rather than into friction.
- Bolt holes are the weak point. Undersized edge distance around a hole is where these crack. Tell us the plate thickness and the fastener size and we will check the edge distance rather than machining what the drawing shows without comment.
- Make it obvious it is fitted, and obvious it must be removed. High-visibility finish and clear marking is normal practice, and it is the cheapest part of the job. Tell us what marking you want — text, a part number, or a warning — and we will include it.
- Open and closed positions. Many designs allow the plate to be swung or slid aside rather than fully removed. If yours does, give us both positions and the pivot or slot geometry.
What to send us
- Plate length, width and thickness
- Mounting-hole, dowel and fastener layout, with edge distances
- Open and closed positions, if the plate moves rather than being removed
- Load direction and the retention condition the engineer has specified
- Mating mold dimensions and assembly drawing
- Material, heat treatment, surface finish and marking requirements
- Tolerance, quantity and destination
Documentation and confidentiality
Material certificates and dimensional inspection reports are available on request, with scope and cost confirmed in the quotation. We supply to your drawing and your specified requirements; we do not issue load ratings or safety certifications for these parts. Technical files are used to evaluate and fulfill your inquiry or order. They may be shared only with relevant manufacturing, inspection, logistics or service partners as needed. Send only files you are authorized to share. See our Privacy Policy. NDA on request from rfq@privleymold.com.
Material and treatment stated
The quotation records confirmed material, heat treatment and surface basis.
Replacement review
Existing references are checked against controlling dimensions and function.
Documents by quotation
Material, hardness or dimensional records are included only when available.
TECHNICAL DATA
Current specification basis
Blank fields remain pending and are not filled by assumption.
- Part number
- PMC-LOCK-80A
- Standard / series
- Mold Transport / Retaining Lock Plate
- Dimensions / notation

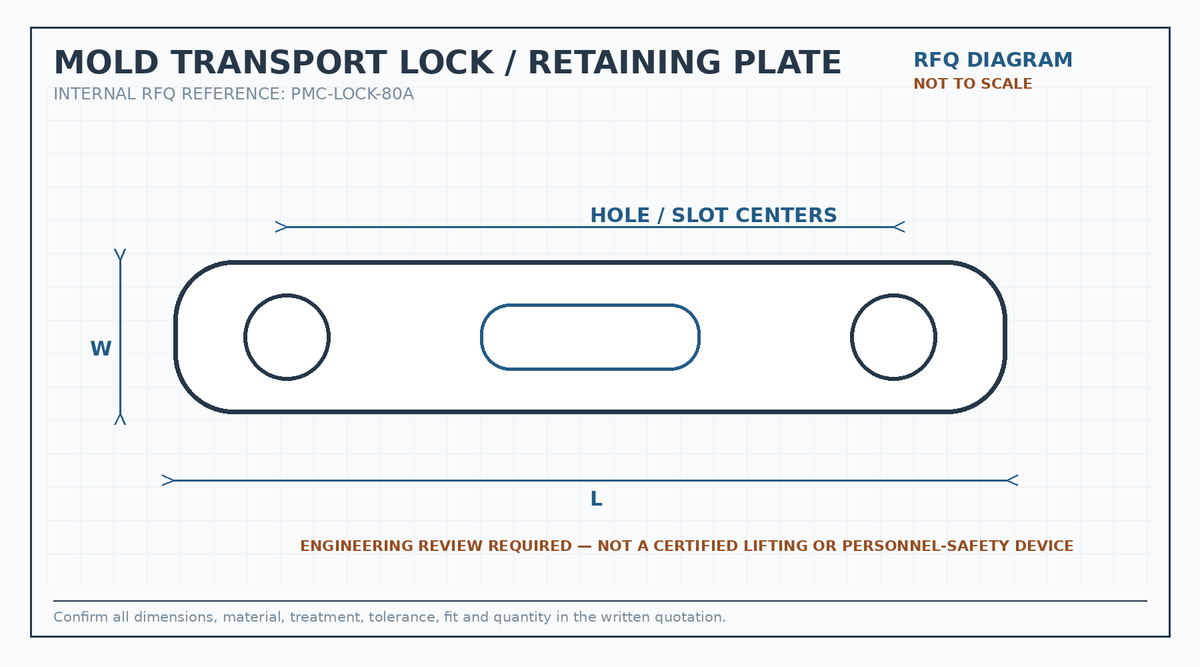

- RFQ dimensions required: plate length L, width W and thickness T; mounting-hole, pin and fastener layout; center distances; open and closed positions; load direction; required retention condition; mating mold dimensions; and assembly drawing.
SELECTION GUIDE
Build the RFQ around the part that must fit
There is no automatic configurator until supplier-verified combinations are loaded.
State every controlling size
Use the drawing notation or attach a marked drawing. Include tolerances where fit is critical.
Specify the required basis
Provide grade, accepted equivalent, heat treatment, hardness and finish.
Identify the existing component
Include brand reference, old part number, mating component and measured dimensions.
Define the buying condition
Quantity, destination, date, packaging, inspection and freight determine the quote.
APPLICATION & VISUAL EVIDENCE
Show where and how the component is used
Application photographs are displayed only when supplied with permission.
DOWNLOADS & FILES
Use structured files to reduce quotation errors
Only files actually available on the website are listed.
REQUEST A WRITTEN QUOTATION
Tell us exactly what must be supplied
A complete inquiry gives engineering, sourcing and purchasing the same reference.
✓
Part number, standard or drawing revision
✓
Dimensions, tolerances and mating information
✓
Material, treatment, hardness and finish
✓
Quantity, destination and required date
✓
Inspection, packaging and freight requirements
Files cannot be attached to this form.
Email authorized drawings, product photos or BOM files to sales@privleymold.com.
PRODUCT RFQPMC-LOCK-80A
