Quote by confirmed dimensions
Size notation and critical fit dimensions are checked before commercial approval.
Product photography required before publication
ENGINEERING RFQ DIAGRAM
REAL PHOTO SET REQUIREDThe current image is an RFQ diagram, not proof of supplied appearance.
- Group or hero product photograph
- Head, tip and surface close-up
- Measurement photo with caliper or scale
- Packaging, label and quantity photograph
01
Specification-led quotationNo placeholder price is treated as an order-ready offer.
02
Replacement matching supportReference brands identify geometry; compatibility is confirmed.
03
Inspection by agreementRequired checks and documents are stated in the quotation.
04
International shipment coordinationCourier, air or sea freight is quoted to destination.
PRODUCT OVERVIEW
Product identification and RFQ basis
The website supports identification and inquiry. The written quotation, approved drawing or approved sample controls the order.

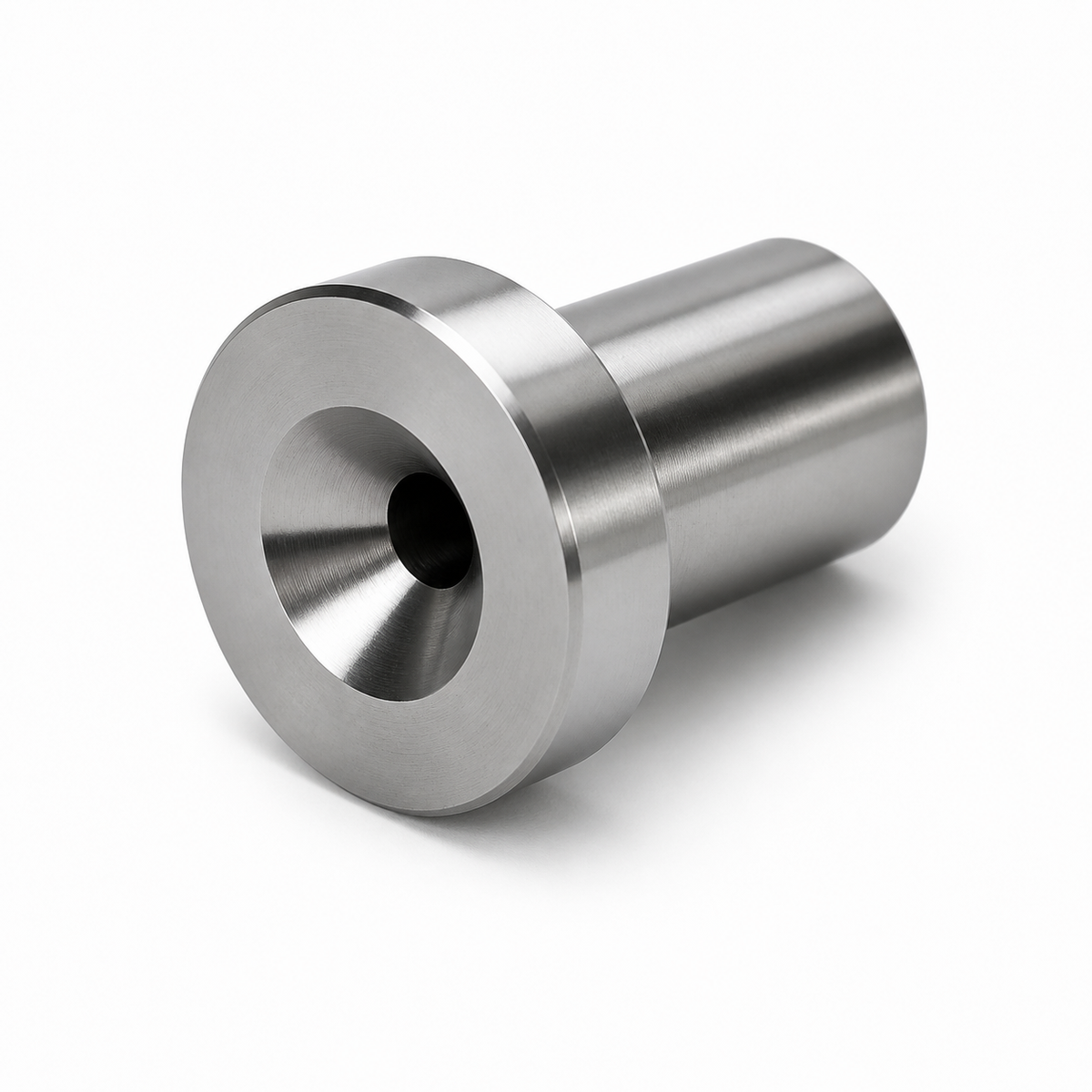

C-Type sprue bushing / mold nozzle for transferring molten resin from the injection-molding machine nozzle into the mold runner system. The product is supplied by confirmed machine and mold-interface dimensions.

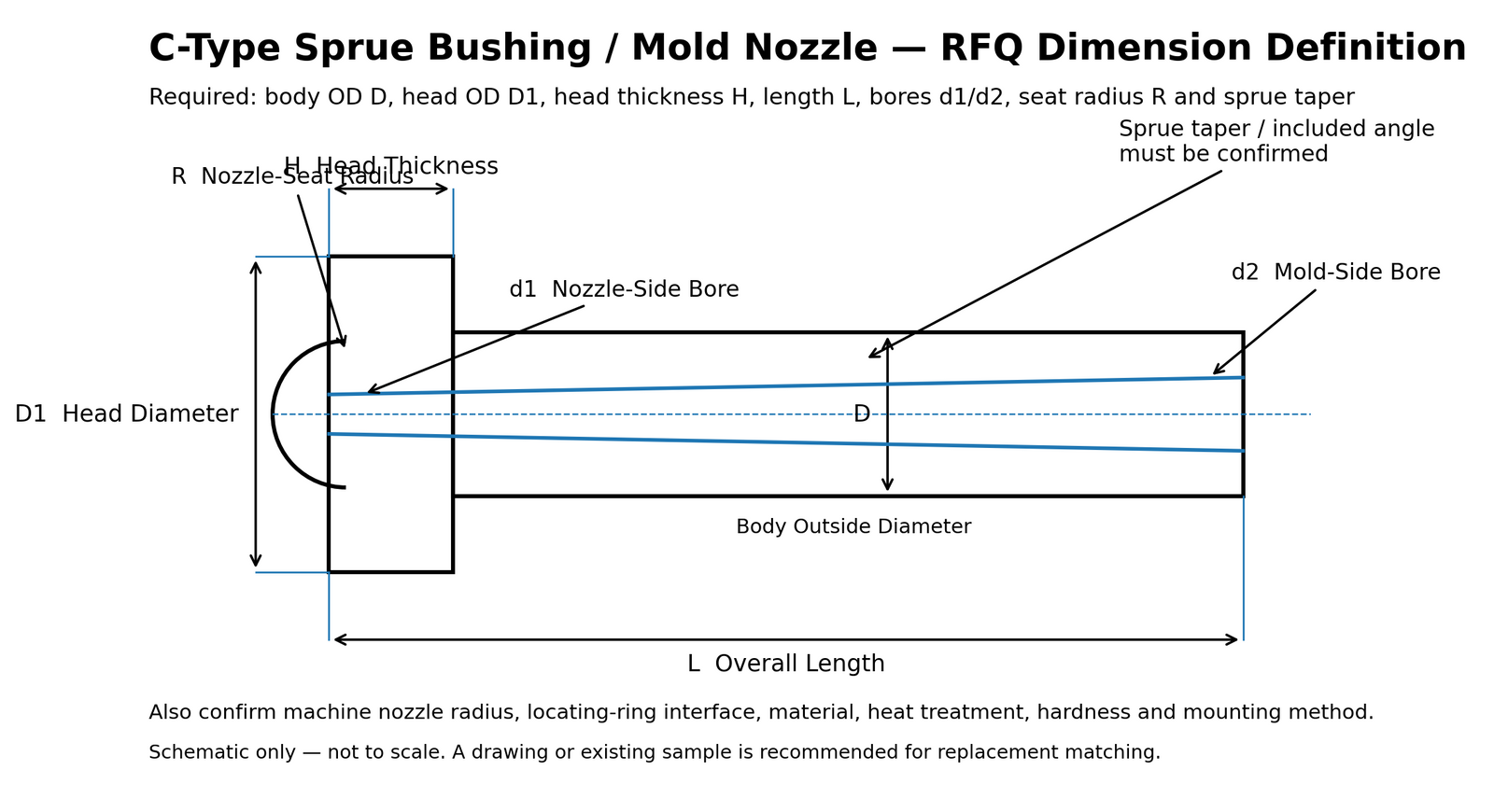

Dimensions required for quotation
| D | Body outside diameter |
| D1 | Head outside diameter |
| H | Head thickness |
| L | Overall length |
| d1 | Nozzle-side sprue bore |
| d2 | Mold-side sprue bore |
| R | Spherical nozzle-seat radius |
| Sprue taper | Included angle or inlet/outlet bore combination |
Interface information to confirm
- Injection-machine nozzle radius and nozzle-tip diameter
- Locating-ring and mold-plate interface
- Mounting method and any bolt-hole or anti-rotation features
- Material, heat treatment, hardness, and surface finish
- Required runner release, polishing, or coating requirements
- Quantity, destination, and inspection-document requirements
Replacement matching
For replacement applications, submit the existing sprue-bushing code, machine model, dimensional drawing, or a measured sample. A similar outside shape does not guarantee that the spherical radius, sprue taper, and nozzle alignment are compatible.
Inquiry-only product: final USD price, lead time, freight, material, hardness, tolerance, and inspection scope will be confirmed in the formal quotation or proforma invoice.
Material and treatment stated
The quotation records confirmed material, heat treatment and surface basis.
Replacement review
Existing references are checked against controlling dimensions and function.
Documents by quotation
Material, hardness or dimensional records are included only when available.
TECHNICAL DATA
Current specification basis
Blank fields remain pending and are not filled by assumption.
- Part number
- PMC-SB-C
- Standard / series
- C-Type Sprue Bushing / Mold Nozzle
- Dimensions / notation
- RFQ dimensions required: body outside diameter D, head diameter D1, head thickness H, overall length L, nozzle-side bore d1, mold-side bore d2, nozzle-seat radius R, and sprue taper. Confirm the machine nozzle and locating-ring interface.
SELECTION GUIDE
Build the RFQ around the part that must fit
There is no automatic configurator until supplier-verified combinations are loaded.
State every controlling size
Use the drawing notation or attach a marked drawing. Include tolerances where fit is critical.
Specify the required basis
Provide grade, accepted equivalent, heat treatment, hardness and finish.
Identify the existing component
Include brand reference, old part number, mating component and measured dimensions.
Define the buying condition
Quantity, destination, date, packaging, inspection and freight determine the quote.
APPLICATION & VISUAL EVIDENCE
Show where and how the component is used
Application photographs are displayed only when supplied with permission.
APPLICATION IMAGE PENDINGNo unauthorized factory or installed-part photograph is used.
This product may be reviewed for injection-mold, die-casting-mold or related tooling applications according to its family. Suitability must be confirmed from the buyer's requirement.
DOWNLOADS & FILES
Use structured files to reduce quotation errors
Only files actually available on the website are listed.
REQUEST A WRITTEN QUOTATION
Tell us exactly what must be supplied
A complete inquiry gives engineering, sourcing and purchasing the same reference.
✓
Part number, standard or drawing revision
✓
Dimensions, tolerances and mating information
✓
Material, treatment, hardness and finish
✓
Quantity, destination and required date
✓
Inspection, packaging and freight requirements
