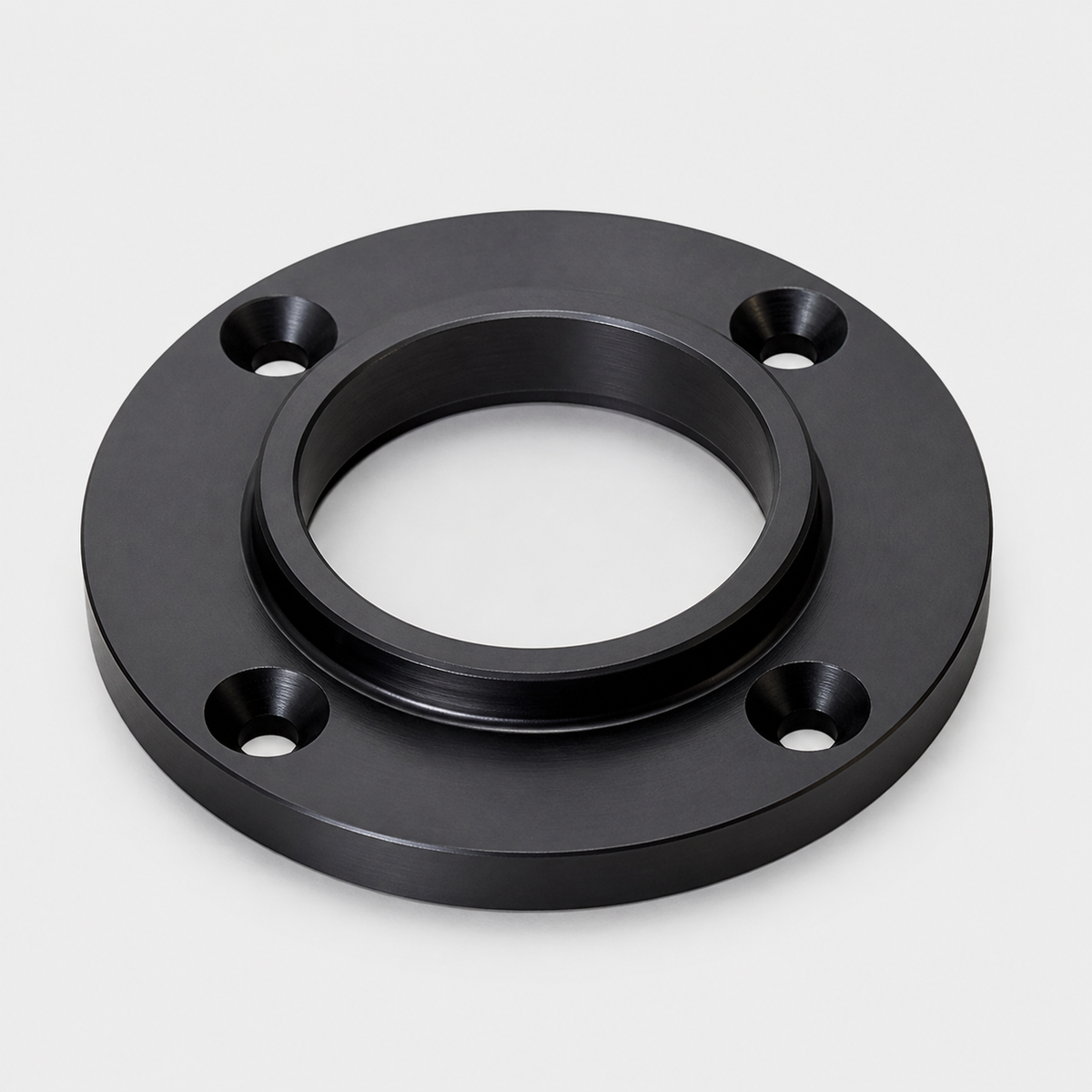

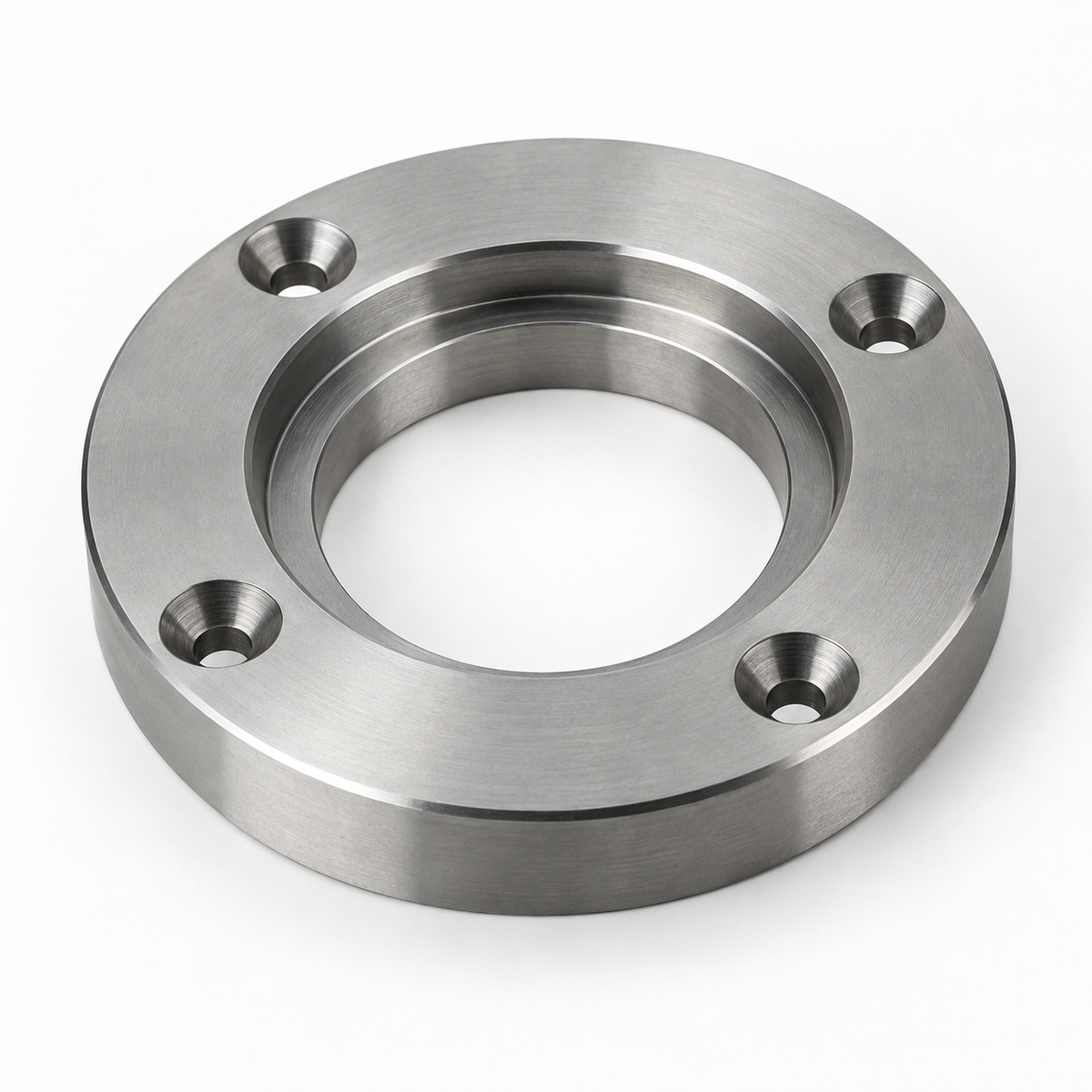

Standard Mold Locating Rings — Single Piece
$13.90 USD
Available to order
Shipment originDanyang, Jiangsu, China
Freight pricingBased on packed chargeable weight: the higher of actual gross weight or carrier dimensional weight
Transit timeEstimated separately after dispatch; weather, customs, policy, peak season and carrier disruption may affect arrival
Tracked deliveryTracking provided when supported by the selected carrier service
Duties & taxesShown where available at checkout; destination import charges remain the buyer’s responsibility unless stated as included
Standard-part returns: request authorization within 14 days after delivery; item must be unused, uninstalled, undamaged and in original packaging. Review the full return policy.
Need a non-standard size? Request a Quote →PRODUCT INFORMATION
Ready to order: select the locating-ring size that matches your mold, add it to cart, and enter any fit-critical mounting details in the order note.
- Sold individually — 1 piece per order unit
- Size format: outside diameter – inside diameter × thickness (mm)
- Best for: injection-mold setup, alignment and replacement
- Need a non-standard bolt pattern or size? Request a quote.
Metric mold locating rings for injection-mold setup, alignment and replacement.
- Package: 1 piece
- Specification format: outside diameter – inside diameter × thickness (mm)
- Origin: Danyang, Jiangsu, China

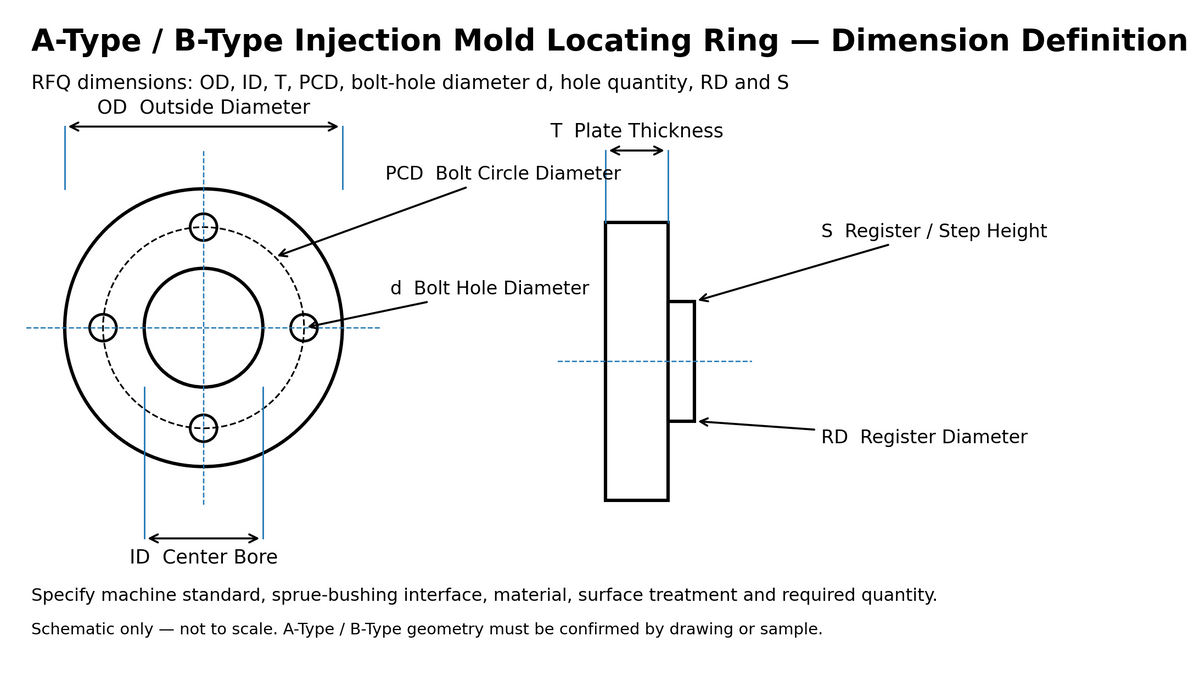

- Before ordering, confirm outside diameter, inside diameter, thickness, bolt-hole pattern and counterbore.
- Material, tolerance and other unlisted technical values must be confirmed when they control fit.
- International freight is based on packed chargeable weight; see Shipping & Delivery.
- For a non-standard ring or different mounting pattern, request a quote.

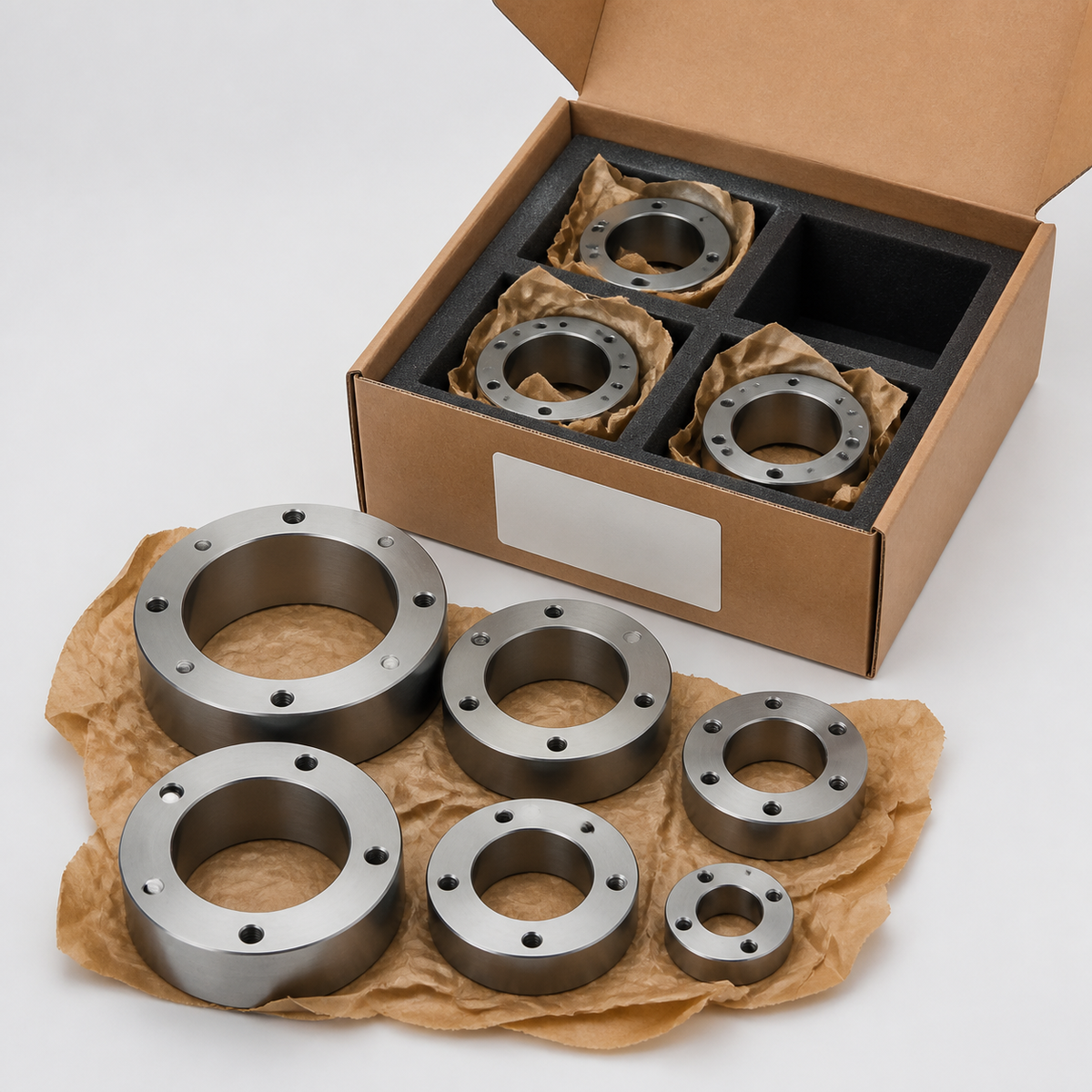

The packaging gallery image is an original illustrative presentation. Actual protective materials and carton format may vary by product size, quantity and shipping route.
TECHNICAL DATA · UNCONFIRMED VALUES ARE NOT ASSUMED
- Material grade
- S45C carbon steel (reference standard locating-ring material)
- Hardness / load grade
- Confirm before ordering
- Surface treatment
- Machined steel; actual protective finish may vary by supplied batch. Confirm when appearance or corrosion protection is critical.
- Key tolerance
- Confirm controlling dimensions before ordering
- Metric specification
- Outside diameter – inside diameter × thickness (mm)
- Package quantity
- 1 piece
- Single-piece weight
- To be confirmed
- Package weight
- To be confirmed
- Country of origin
- Danyang, Jiangsu, China
- Processing time
- Varies by specification; confirm before ordering when timing is critical
- International freight
- Quoted from packed chargeable weight; carrier transit time is estimated separately
- Typical application
- Injection-mold setup, alignment and replacement
- How to select
- Match outside diameter, inside diameter, thickness and mounting pattern.
- Check before ordering
- Outside diameter, inside diameter, thickness, bolt-hole pattern and counterbore
- Non-standard dimensions
- Submit an RFQ with a drawing, photo or measured dimensions
