Quote by confirmed dimensions
Size notation and critical fit dimensions are checked before commercial approval.
Authorized product photography available
PRODUCT PHOTO
01
Specification-led quotationNo placeholder price is treated as an order-ready offer.
02
Replacement matching supportReference brands identify geometry; compatibility is confirmed.
03
Inspection by agreementRequired checks and documents are stated in the quotation.
04
International shipment coordinationCourier, air or sea freight is quoted to destination.
PRODUCT OVERVIEW
Product identification and RFQ basis
The website supports identification and inquiry. The written quotation, approved drawing or approved sample controls the order.

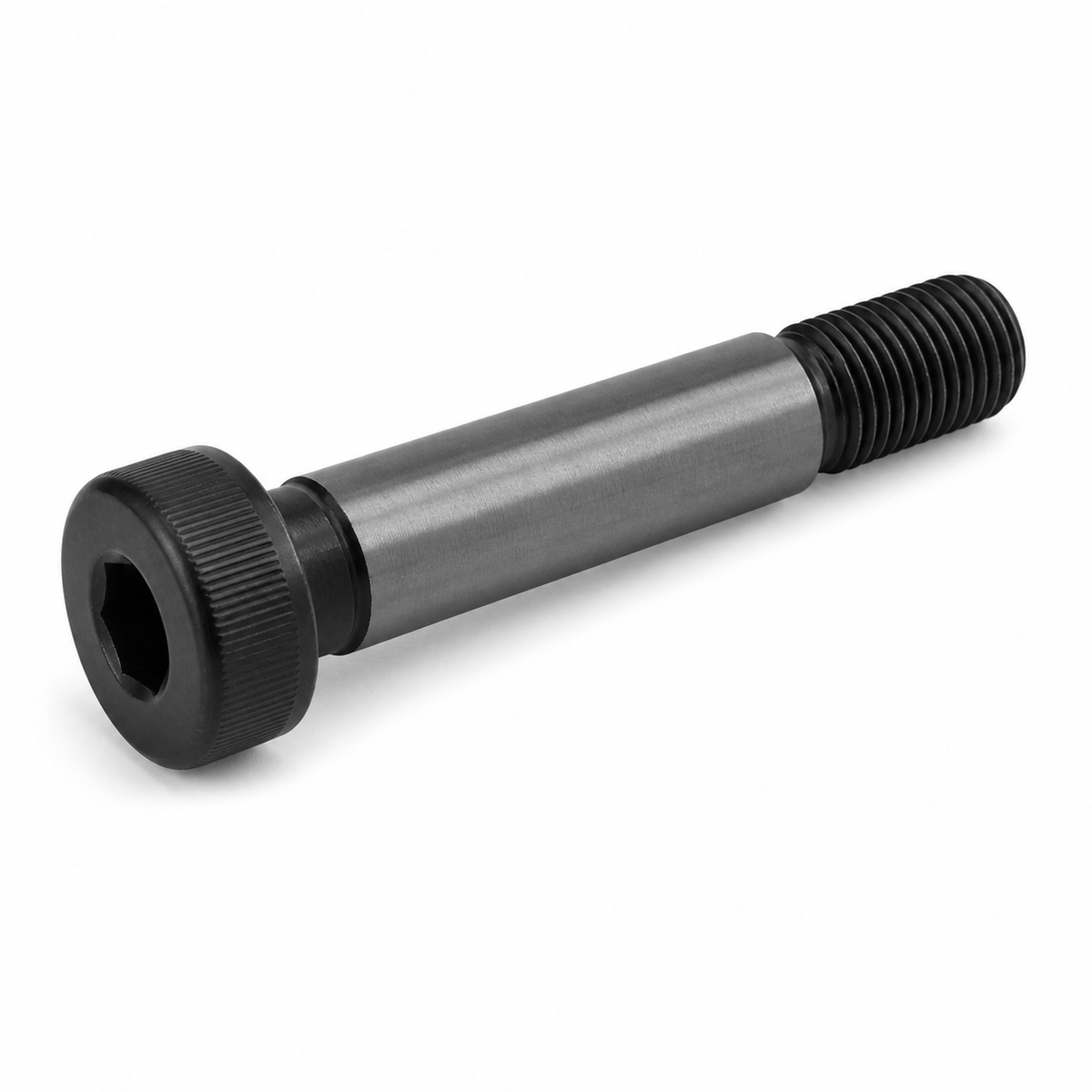

Metric shoulder screws — also called stripper bolts, stop bolts or equal-height screws — supplied to your size. Used in mold plates, slide assemblies, guide structures and fixtures wherever a precise shoulder has to locate while the thread clamps. Send the size designation, a drawing, or the dimensions off an existing screw and we come back with unit price, lead time and trade terms in writing — normally within one business day (Hong Kong time, Monday–Friday).
Your drawings stay confidential
Technical files are used to evaluate and fulfill your inquiry or order. They may be shared only with relevant manufacturing, inspection, logistics or service partners as needed. Send only files you are authorized to share. See our Privacy Policy. If your company requires an NDA, send the agreement or requirements to rfq@privleymold.com for review before sharing confidential files.
What to send us
| Shoulder diameter (D) | Required — Ø13, Ø16 and Ø20 are the most commonly requested; other diameters quoted on request |
| Shoulder length (L1) | Required — this sets the working height, so measure it carefully |
| Thread size and pitch (M × P) | Required |
| Head and drive | Head diameter, head height and socket size, or just tell us the hex key that fits |
| Overall length | Needed when it differs from the standard series |
| Property class | Supplied as class 12.9 unless you specify otherwise |
| Surface finish | Black oxide, zinc, or another treatment |
| Quantity | Required — drives both unit price and freight |
Don't have all of this? Send what you have. A photo of the existing screw next to a caliper is often enough to start, and we will tell you what else we need. Shoulder length and thread pitch are the two that must be right — everything else we can work around.
What we can supply
- Standard metric shoulder screws in common shoulder diameters
- Non-standard shoulder lengths and overall lengths
- Replacement matching from a part number, drawing or sample
- Mixed sizes and quantities for mold maintenance and BOM sourcing
Documentation
Material certificates, hardness results and dimensional inspection reports can be supplied with your order. Tell us what your quality system requires and we will confirm the scope — and any cost — in the quotation, so there are no surprises at goods-in.
What your quotation will state
Final specification, unit price, currency, lead time, packaging, freight and inspection scope — all in writing before you commit. Nothing is left to be worked out after the order.
Questions before you send a drawing? Email rfq@privleymold.com — we answer technical questions without any obligation to order.
Material and treatment stated
The quotation records confirmed material, heat treatment and surface basis.
Replacement review
Existing references are checked against controlling dimensions and function.
Documents by quotation
Material, hardness or dimensional records are included only when available.
TECHNICAL DATA
Current specification basis
Blank fields remain pending and are not filled by assumption.
- Part number
- PMC-SCR-129-SH
- Standard / series
- Grade 12.9 Metric Shoulder Screw / Stripper Bolt
- Dimensions / notation

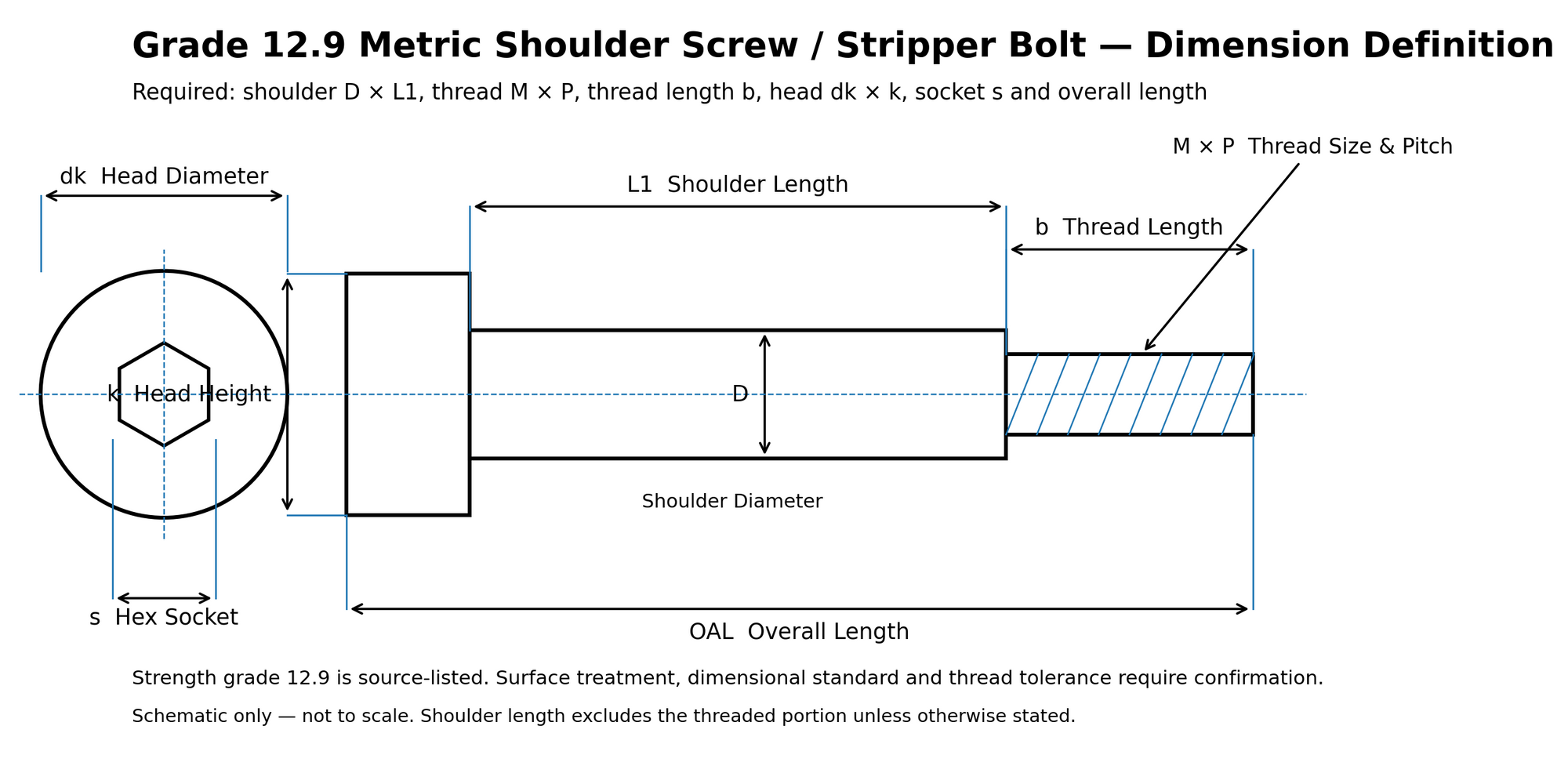

- RFQ dimensions required: shoulder diameter D, shoulder length L1, thread size and pitch M × P, thread length b, head diameter dk, head height k, hex-socket size s, and overall length OAL. Source-visible shoulder diameters include D13, D16, and D20; other dimensions remain pending.
SELECTION GUIDE
Build the RFQ around the part that must fit
There is no automatic configurator until supplier-verified combinations are loaded.
State every controlling size
Use the drawing notation or attach a marked drawing. Include tolerances where fit is critical.
Specify the required basis
Provide grade, accepted equivalent, heat treatment, hardness and finish.
Identify the existing component
Include brand reference, old part number, mating component and measured dimensions.
Define the buying condition
Quantity, destination, date, packaging, inspection and freight determine the quote.
APPLICATION & VISUAL EVIDENCE
Show where and how the component is used
Application photographs are displayed only when supplied with permission.
APPLICATION IMAGE PENDINGNo unauthorized factory or installed-part photograph is used.
This product may be reviewed for injection-mold, die-casting-mold or related tooling applications according to its family. Suitability must be confirmed from the buyer's requirement.
DOWNLOADS & FILES
Use structured files to reduce quotation errors
Only files actually available on the website are listed.
REQUEST A WRITTEN QUOTATION
Tell us exactly what must be supplied
A complete inquiry gives engineering, sourcing and purchasing the same reference.
✓
Part number, standard or drawing revision
✓
Dimensions, tolerances and mating information
✓
Material, treatment, hardness and finish
✓
Quantity, destination and required date
✓
Inspection, packaging and freight requirements
Files cannot be attached to this form.
Email authorized drawings, product photos or BOM files to sales@privleymold.com.
PRODUCT RFQPMC-SCR-129-SH
