Quote by confirmed dimensions
Size notation and critical fit dimensions are checked before commercial approval.
Product photography required before publication
ENGINEERING RFQ DIAGRAM
REAL PHOTO SET REQUIREDThe current image is an RFQ diagram, not proof of supplied appearance.
- Group or hero product photograph
- Head, tip and surface close-up
- Measurement photo with caliper or scale
- Packaging, label and quantity photograph
01
Specification-led quotationNo placeholder price is treated as an order-ready offer.
02
Replacement matching supportReference brands identify geometry; compatibility is confirmed.
03
Inspection by agreementRequired checks and documents are stated in the quotation.
04
International shipment coordinationCourier, air or sea freight is quoted to destination.
PRODUCT OVERVIEW
Product identification and RFQ basis
The website supports identification and inquiry. The written quotation, approved drawing or approved sample controls the order.

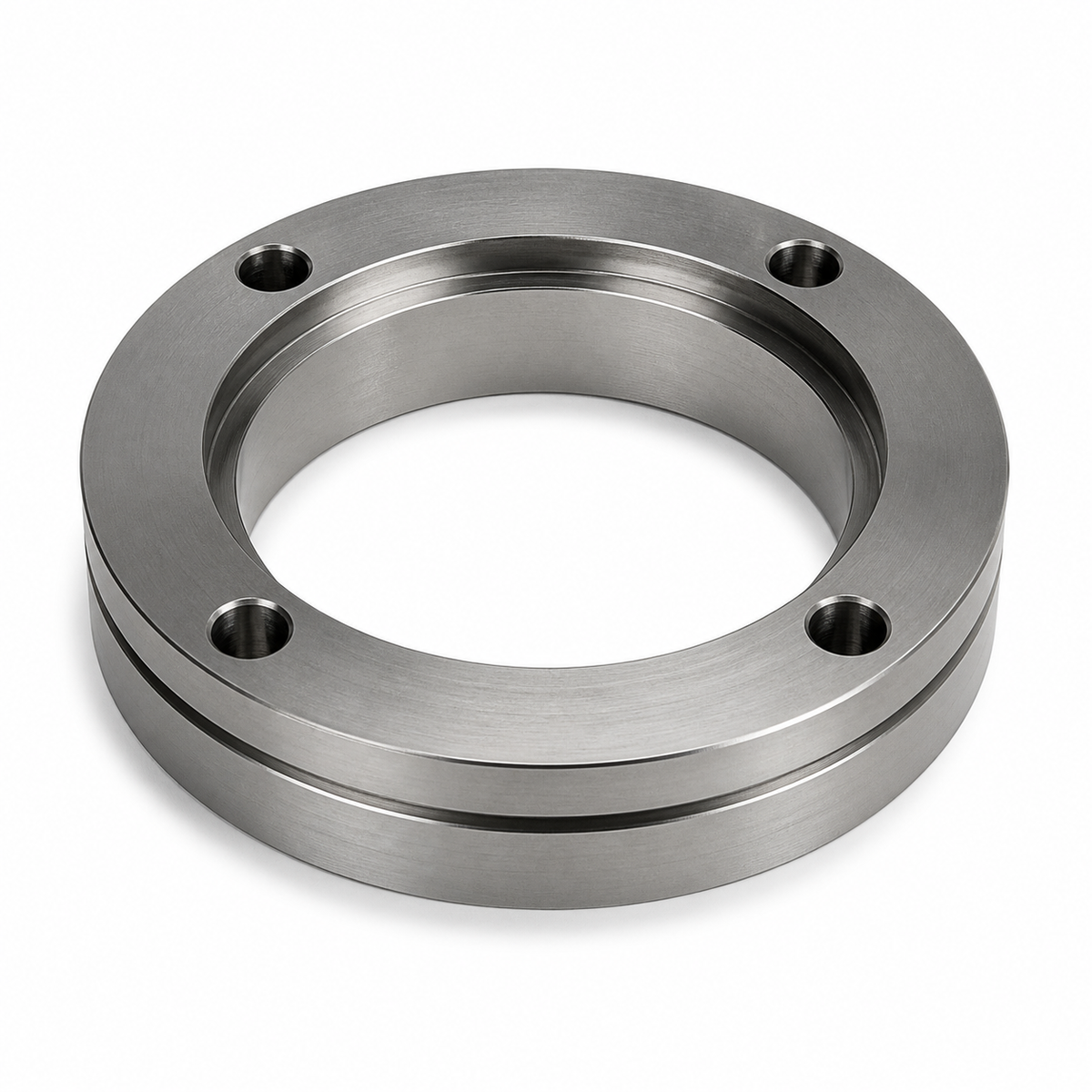

A-Type / B-Type injection mold locating ring for aligning the mold with the injection-molding machine platen and nozzle center. This product is supplied by specification and remains inquiry-only until the machine interface and mounting dimensions are confirmed.

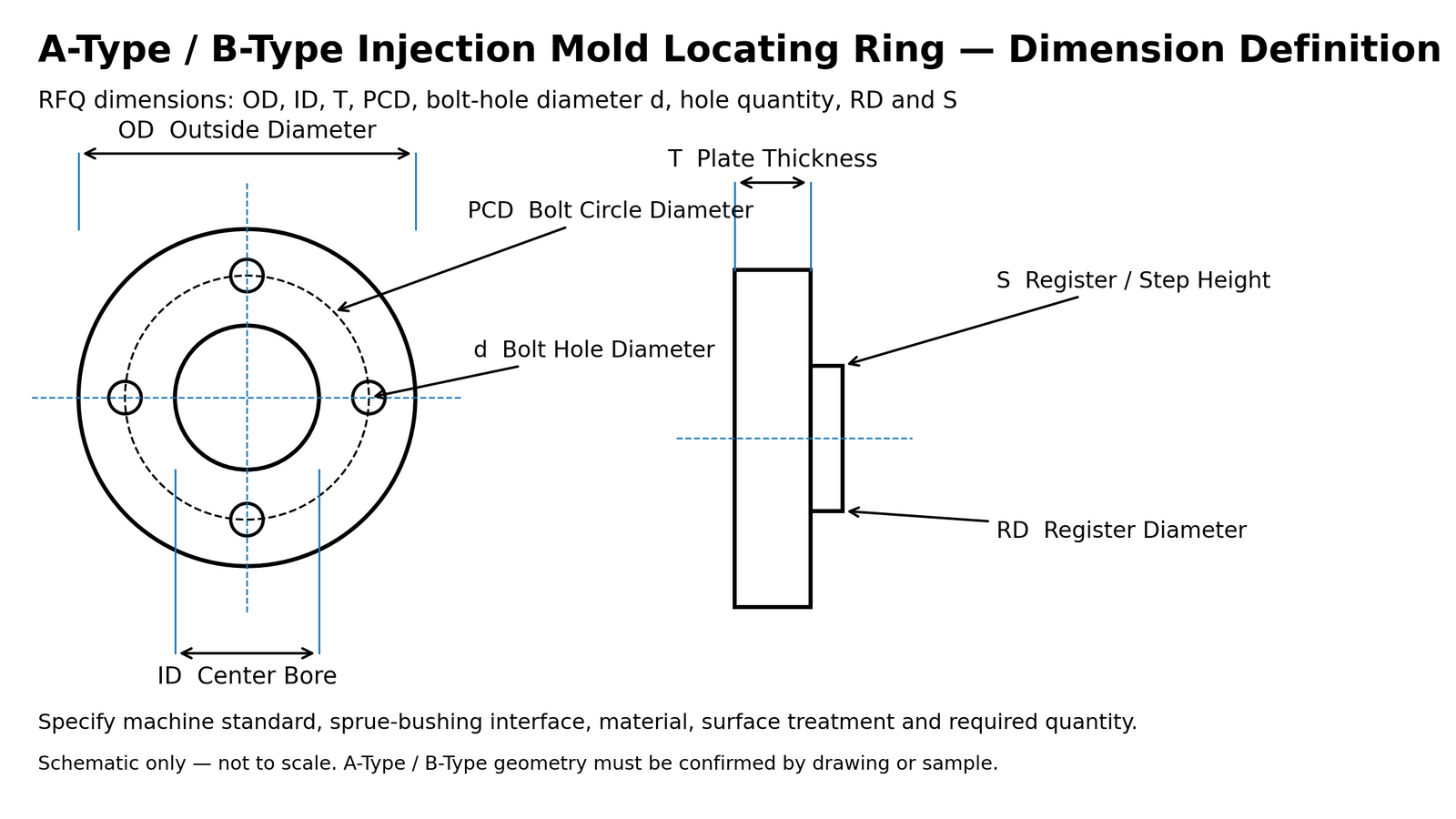

Dimensions required for quotation
| OD | Outside diameter |
| ID | Center-bore diameter |
| T | Plate thickness |
| PCD | Bolt-circle diameter |
| d | Bolt-hole diameter |
| Hole quantity | Number and angular arrangement of mounting holes |
| RD | Register or step diameter |
| S | Register or step height |
Also confirm
- Machine standard or existing locating-ring reference
- Sprue-bushing and nozzle interface
- Material and required surface treatment
- Mounting-hole type, including through holes or counterbores
- Required quantity and destination country
Ordering note
The terms A-Type and B-Type can vary between suppliers. Please submit a drawing, dimensional sketch, machine model, or sample photograph before order approval. No fit, tolerance, material, hardness, or surface treatment is assumed unless it appears in the formal quotation.
Inquiry-only product: final USD price, lead time, freight, inspection scope, and trade terms will be stated in the quotation or proforma invoice.
Material and treatment stated
The quotation records confirmed material, heat treatment and surface basis.
Replacement review
Existing references are checked against controlling dimensions and function.
Documents by quotation
Material, hardness or dimensional records are included only when available.
TECHNICAL DATA
Current specification basis
Blank fields remain pending and are not filled by assumption.
- Part number
- PMC-LR-AB
- Standard / series
- A-Type / B-Type Injection Mold Locating Ring
- Dimensions / notation
- RFQ dimensions required: outside diameter OD, center bore ID, plate thickness T, bolt-circle diameter PCD, bolt-hole diameter d, hole quantity, register diameter RD, and register height S. Confirm the injection-machine standard.
SELECTION GUIDE
Build the RFQ around the part that must fit
There is no automatic configurator until supplier-verified combinations are loaded.
State every controlling size
Use the drawing notation or attach a marked drawing. Include tolerances where fit is critical.
Specify the required basis
Provide grade, accepted equivalent, heat treatment, hardness and finish.
Identify the existing component
Include brand reference, old part number, mating component and measured dimensions.
Define the buying condition
Quantity, destination, date, packaging, inspection and freight determine the quote.
APPLICATION & VISUAL EVIDENCE
Show where and how the component is used
Application photographs are displayed only when supplied with permission.
APPLICATION IMAGE PENDINGNo unauthorized factory or installed-part photograph is used.
This product may be reviewed for injection-mold, die-casting-mold or related tooling applications according to its family. Suitability must be confirmed from the buyer's requirement.
DOWNLOADS & FILES
Use structured files to reduce quotation errors
Only files actually available on the website are listed.
REQUEST A WRITTEN QUOTATION
Tell us exactly what must be supplied
A complete inquiry gives engineering, sourcing and purchasing the same reference.
✓
Part number, standard or drawing revision
✓
Dimensions, tolerances and mating information
✓
Material, treatment, hardness and finish
✓
Quantity, destination and required date
✓
Inspection, packaging and freight requirements
Files cannot be attached to this form.
Email authorized drawings, product photos or BOM files to zyr6863@gmail.com.
PRODUCT RFQPMC-LR-AB
